When water’s up to your ankles, you need action fast. This guide walks you through Installing a sump pump bin a flooded basement. We’ll cover safety, pump sizing, pit layout, discharge routes, electrics, and testing. You’ll see what to do first, what to avoid, and how to hand over cleanly. On most jobs, one solid day gets it done. With clear steps, you can install with confidence and avoid call-backs. Installing a sump pump bin a flooded basement is tough, but the process is simple when you follow a plan.

Quick Answer

Installing a sump pump bin a flooded basement means cutting a pit, setting a perforated sump liner, fitting a pump and check valve, and piping discharge away from the foundation. Power the unit on a protected RCD circuit, test float and flow, then seal the lid. Always start with safety and a clear discharge route.

Table of Contents

• Safety First and Site Assessment
• Select Pump, Pit, and Discharge Hardware
• Step-by-Step: Installing a Sump Pump Bin a Flooded Basement
• Power, Alarms, and Backup Options
• Testing, Commissioning, and Handover
• Pricing, Paperwork, and Client Communication
• FAQs

Key Takeaways

• Prioritise safety first: isolate electrics and PPE before any cut.
• Size the pit 450–600 mm wide and 600–900 mm deep for most homes.
• Use 32–40 mm discharge, a check valve, and route water 3–5 m away.
• Test float, cycle time, and flow rate; aim for 6,000–10,000 L/h pumps.
• Document scope and warranty clearly to avoid disputes later.

Safety First and Site Assessment

Before Installing a sump pump bin a flooded basement, make it safe. Cut power to basement circuits if outlets are near water. Use an RCD-protected extension lead for tools. Wear boots, gloves, and eye protection.

• Check water depth. Over 200 mm? Start a temporary pump to lower the level.
• Trace utility lines in the slab. Radiant heat or rebar? Scan before coring.
• Pick the lowest point for the pit. Near an internal wall is common. Keep 300 mm clear from footings.
• Plan your discharge route now. No route, no cut. Don’t pipe into foul drains unless local rules allow it.

Installing a sump pump bin a flooded basement without a discharge plan is the most common mistake. Sort that early.

Select Pump, Pit, and Discharge Hardware

Choosing right saves you call-backs.

Pump Type and Capacity

• Submersible pumps are quieter and sit inside the pit. Good for homes.
• Aim for 6,000–10,000 L/h at 2–3 m head. Check the pump curve, not just the box.
• A float switch should be unobstructed. Vertical floats suit narrow pits.

Pit (Sump Liner) and Stone

• Typical pit: 450–600 mm diameter, 600–900 mm deep with a sealed lid.
• Bed the liner on 50–75 mm of clean 20 mm gravel. Backfill with gravel to promote flow.

Discharge Pipework

• 32 mm (1-1/4") or 40 mm (1-1/2") solvent-weld PVC/ABS is standard.
• Fit a check (non-return) valve 300–450 mm above the pump outlet.
• Drill a 3–4 mm weep hole just above the pump outlet (inside the pit) to prevent airlock.
• Discharge at least 3–5 m away from the foundation, to a visible location or soakaway.

Valves, Unions, and Penetrations

• Add a union below the check valve for easy service.
• Core drill an exit hole through the wall. A 51 mm core usually suits 40 mm pipe with sleeve.
• Seal the penetration with waterproof mastic or expanding foam, then cement.

Installing a sump pump bin a flooded basement works best with a quiet, sealed lid. It cuts odour and noise, and keeps debris out.

Step-by-Step: Installing a Sump Pump Bin a Flooded Basement

Follow these numbered steps for speed and quality. This is the heart of Installing a sump pump bin a flooded basement.

1. Mark the Pit
   • Mark a 500–600 mm circle at the low point. Keep at least 300 mm from footings.
2. Break and Excavate
   • Score the slab, break with a breaker, and remove rubble. Dig 650–900 mm deep. Keep sides plumb.
3. Prepare Base
   • Add 50–75 mm of clean gravel. Level it. This stops silt sucking into the pump.

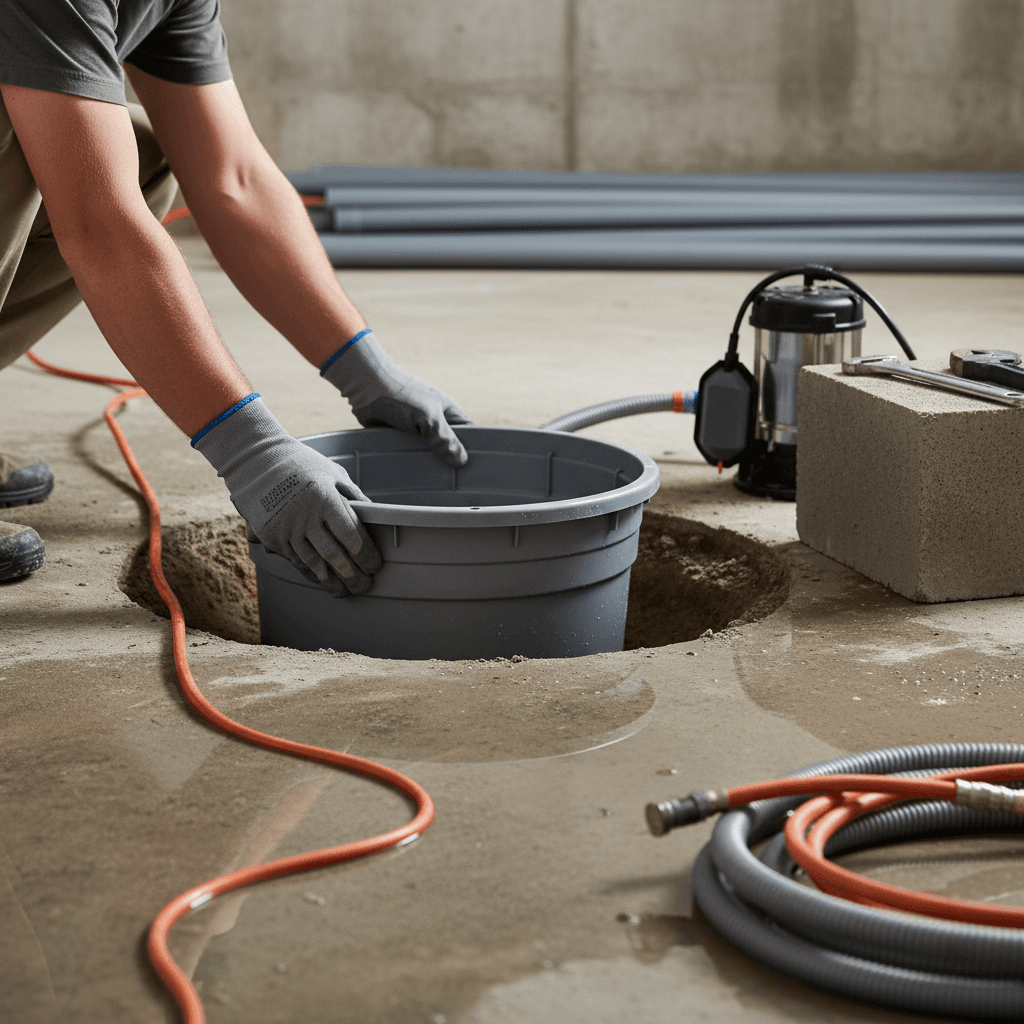

4. Set the Liner
   • Drop the perforated sump liner. Check it’s level. Backfill evenly with 20 mm gravel to 50–75 mm below slab level.
5. Dry Fit the Pump and Pipe
   • Fit a short riser, union, and check valve. Add discharge riser to lid height. Drill a 3–4 mm weep hole above the pump outlet.
6. Core the Wall and Run Discharge
   • Core a 51–60 mm hole for 40 mm pipe plus sleeve. Pitch the pipe slightly downwards as it exits. Route 3–5 m away to daylight or an approved soakaway.
7. Seal Penetrations and Rebuild Slab Edge
   • Foam and cement the exit. Mix concrete to patch around the lid. Leave the lid removable.
8. Wire and Protect
   • Plug into an RCD-protected socket (30 mA). Keep the lead tidy and off the floor.
9. Test and Commission
   • Fill the pit with a hose. Watch the float lift, pump start, and water clear. Check for leaks at unions and through-wall sleeve.
10. Clean Up and Handover

• Label the socket. Note pump make/model, date, and next service. Show the client how to test monthly.

Installing a sump pump bin a flooded basement takes 4–6 hours with two workers once the plan is set. Add 24 hours if you’re re-pouring a larger patch.

Power, Alarms, and Backup Options

• Power: Use a dedicated socket on an RCD. Follow BS 7671 for circuits and protection. Keep connections dry and high.
• Alarm: Fit a high-water alarm. Simple float alarms save basements at 2 a.m.
• Battery Backup: For outage-prone areas, add a 12 V pump and charger. It can move 3,000–5,000 L/h for short periods.
• Check Valve Access: Keep it reachable. Most call-outs are sticky checks.

Installing a sump pump bin a flooded basement without an alarm is penny wise, pound foolish. Fit the alarm.

Testing, Commissioning, and Handover

• Flood Test: Fill to just above the float. Time the cycle. Under 30–60 seconds is common for average inflow.
• Head Check: If head height is over 3 m, expect lower flow. Verify against the pump curve.
• Leak Check: Inspect every joint. Dry the pipe and run a tissue over fittings.
• Noise and Vibration: Add a rubber coupling or pad under the lid if it hums.
• Documentation: Record pit size, pump model, discharge route, and testing notes.
• Client Demo: Show monthly test steps: lift float or add water, listen, and check discharge point.

Installing a sump pump bin a flooded basement is only “done” when the client knows how to test it.

Pricing, Paperwork, and Client Communication

Set clear expectations up front.

• Scope: State exact pit size, pump model, discharge route, any coring, and making-good.
• Exclusions: External trenching, soakaway construction, and foul connections (unless allowed) should be listed as extras.
• Variations: If ground is hard or rebar is heavy, discuss a change before you cut.
• Paper Trail: Photos before/after, and a signed acceptance keep you safe.

Many contractors find proposals take too long when emergencies hit. Tools like Donizo let you capture site details by voice, generate a branded proposal fast, send it for e‑signature, and convert it to an invoice in one click. That smooths storm-week chaos and helps you win the work while you’re still on site.

If you’re also looking to streamline professional proposals, see our guide on “professional proposals.” This pairs well with understanding “invoice templates that save time,” and “change orders done right” for scope shifts.

FAQ

Do I pump the basement dry before cutting the pit?

Lower the water to a safe level so tools and electrics stay clear, but don’t fight every last puddle. Keep a small utility pump running while you cut. Installing a sump pump bin a flooded basement goes faster if you control, not eliminate, standing water.

How big should the sump pit be?

Most homes do fine with 450–600 mm diameter and 600–900 mm deep. Larger basements or high inflow may need bigger. A sealed lid helps with safety, noise, and odour. Installing a sump pump bin a flooded basement works best with a properly sized liner.

Where should the discharge go?

Outdoors to daylight, a soakaway, or a storm system if local rules allow. Keep it 3–5 m away from the foundation and visible where possible. Avoid foul drains unless permitted. Installing a sump pump bin a flooded basement needs a safe, legal outlet.

Can I install during heavy rain?

Yes, but plan for constant inflow. Use a temporary pump to hold the level down while you cut and set the liner. Installing a sump pump bin a flooded basement in a storm takes more hands and steady control.

Do I need a battery backup?

If outages are common, yes. A small 12 V backup can protect the home for short periods. It’s cheap insurance. Installing a sump pump bin a flooded basement without backup is fine in stable areas, but explain the risk.

Conclusion

Installing a sump pump bin a flooded basement comes down to safety, smart sizing, a clean discharge, solid electrics, and proper testing. Follow the steps, document the job, and teach the client how to test monthly. Want faster approvals during emergencies? Platforms such as Donizo help you turn site notes into signed proposals and invoices fast.

Next steps:

• Confirm discharge route and pump size before you cut.
• Prepare all fittings: check valve, union, sleeve, and sealant.
• Test, label, and hand over with simple maintenance instructions.

Do it right once, and you’ll avoid weekend call-backs when the rain returns.
